SFP-70D2-DUAL for SF and MT

概述

SFP-70D2-DUAL for SF and MT

SFP-70D2-DUAL for SF and MT

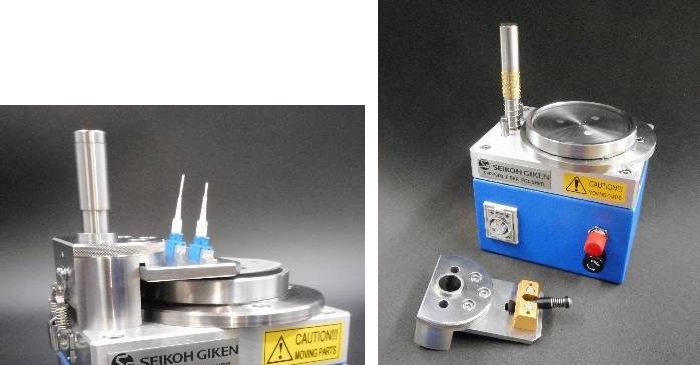

采用配備精密導向軸的SFP-70D2-DUAL 進行SF和MT研磨



采用配備精密導向軸的SFP-70D2-DUAL進行SF和MT研磨

特征

單芯研磨

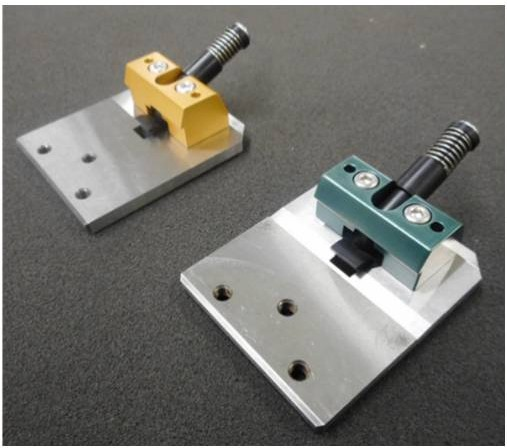

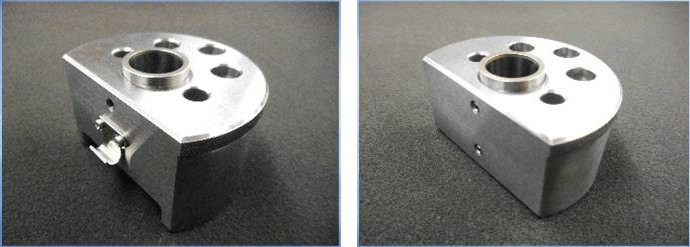

用于單芯研磨的新型RP72-37SF壓塊可使用在所有現有的SFP-70D2 IPC研磨夾具上
符合人體工程學，設計簡單，易于使用
周期時間短（返工通常為2分鐘）
多種支架可供選擇，如裸光纖研磨、高功率激光和手術激光連接器的重新研磨

多芯研磨

使用RP72-37MT-B壓塊進行MT研磨
通過使用單桿MT夾具，可以輕松完成高性能MT
研磨，就像單纖維拋光一樣。
適用于全步驟研磨和返工


Polishing Result (Full Step N = 5 pcs for each type)
PH072-MT-1Q (MT/PC)


No. Ferrule X angle (?) Ferrule Y angle (?) Ferrule X radius (mm) Ferrule Y radius
(mm) 		Min fiber height
(nm) 		Max fiber height
(nm) 		Max core dip (nm) Minus coplanarity
(nm)

1

-0.06 -0.04 5974 301 2235 2356 18.9 82.9

2

0.09 0.00 8629 343 2235 2316 14.9 55.6

3

0.08 0.01 6742 327 2207 2337 14.5 83.1

4

0.07 -0.04 7180 288 2210 2353 18.7 89.5

5

-0.07 0.00 4842 285 2194 2366 29.4 98.9


PH072-MT8A-1Q (MT/APC)

No. Ferrule X angle (deg) Ferrule Y angle (deg) Ferrule X radius (mm) Ferrule Y radius (mm) Min fiber height (nm) Max fiber height (nm) Max core dip (nm) Minus coplanarity (nm)

1

0.06 8.01 6757 288 2277 2474 - 112.6

2

0.05 8.01 17770 279 2217 2306 - 55.3

3

0.04 7.97 33920 359 2225 2305 - 62.5

4

0.02 7.99 31281 269 2258 2362 - 53.8

5

0.02 8.02 6700 287 2223 2363 - 83.1


Disclaimer- 1) Polishing method with use of fibrous material is patented in the U.S (US patent No. 6106368). 2) A ferrule assembly with fiber protrusion between 0.5um and 2.5um after polishing is patented in the U.S. (US patent No. 5743785).


SFP-70D2-DUAL Standard Package

Description Part Number Qty
Main unit SFP-70D2-MT 1
Holder weight for S/F polishing RP72-37SF 1
Holder weight for MT polishing RP72-37MT-B 1
Accessories
Cable hanger FP-HR 1
Allen wrench set FP-TS 1
AC/DC adapter + cable AD20 1
1 AMP fuse FP-F1A 10
Grease FP-GS (27g) 1
Operation manual FP-IM70D2-DU 1



Polishing holders are separately sold
