SFP-70D2-MT

概述

SFP-70D2-MT with MT One-lever Action Holder

SFP-70D2-MT

便攜型MT研磨機和快裝夾具



便攜型MT研磨機和快裝夾具

研磨機: SFP-70D2-MT
研磨夾具: PH072-MT-1Q(PC)
PH072-MT8A-1Q (APC)
容量:1個頭/次
容量:1個頭/次

特征

適用于MT插芯的全步驟研磨和返工
只需插入插芯并鎖定即可固定
小批量生產和返工的最佳解決方案


MT/PC干磨工藝建議
PPS MT ferrule, For M/M OM3 fiber Core dip <=50um,Fiber count: 12F & 24F


POLISHING PROCESS POLISHING CONDITIONS
POLISHING PAD FILM (service life) LIQUID TIME (min)
1st. Step PG07-490-SR3 GC07 (1) D.I WATER 1.0
(Repolishing: 0.2)
2nd. Step PG07-490-SR3 AR07 (1) D.I WATER 1.0
3rd. Step PG07-490-SR3 GH07 (1) D.I WATER 1.0
Final Step PG07-490-SR3 FM07-SOAP (1) D.I WATER 2.5
(Repolishing: :0.5～1.5)


?Same process for MT/APC
?Repolishing for scratch removal, start from Final step.
?Repolishing for geometry rework, start from 1st. Step.


Polishing Result (Full Step N = 5 pcs for each type)
PH072-MT-1Q (MT/PC)


No. Ferrule X angle (?) Ferrule Y angle (?) Ferrule X radius
(mm) 		Ferrule Y radius
(mm) 		Min fiber height
(nm) 		Max fiber height
(nm) 		Max core dip (nm) Minus coplanarity
(nm)
1 -0.06 -0.04 5974 301 2235 2356 18.9 82.9
2 0.09 0.00 8629 343 2235 2316 14.9 55.6
3 0.08 0.01 6742 327 2207 2337 14.5 83.1
4 0.07 -0.04 7180 288 2210 2353 18.7 89.5
5 -0.07 0.00 4842 285 2194 2366 29.4 98.9


PH072-MT8A-1Q (MT/APC)


No. Ferrule X angle (deg) Ferrule Y angle (deg) Ferrule X radius (mm) Ferrule Y radius (mm) Min fiber height (nm) Max fiber height (nm) Max core dip (nm) Minus coplanarity (nm)
1 0.06 8.01 6757 288 2277 2474 - 112.6
2 0.05 8.01 17770 279 2217 2306 - 55.3
3 0.04 7.97 33920 359 2225 2305 - 62.5
4 0.02 7.99 31281 269 2258 2362 - 53.8
5 0.02 8.02 6700 287 2223 2363 - 83.1

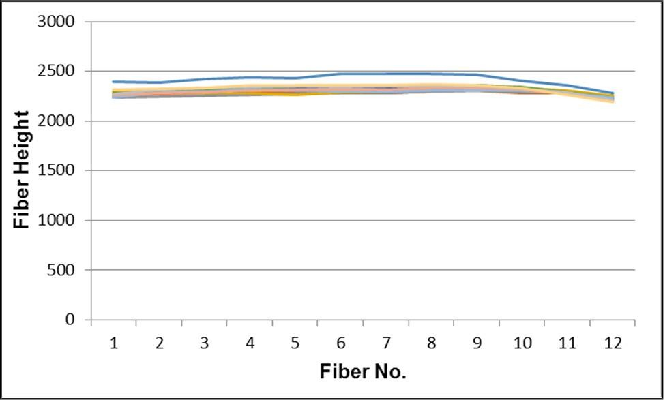

Fiber protrusion of the above 10 samples



MAX 2474.4 nm
MIN 2194.0 nm
AVE 2312.7 nm
STD 54.4

Disclaimer- 1) Polishing method with use of fibrous material is patented in the U.S (US patent No. 6106368). 2) A ferrule assembly with fiber protrusion between 0.5um and 2.5um after polishing is patented in the U.S. (US patent No. 5743785).
