中型MT研磨機現已上市

概述

中型MT研磨機現已上市

SFP-70D-MT

同時研磨MT Ferrule 1頭起，最多6頭； 與SFP-550系列具有相同的幾何性能； 適用于小批量、重新拋光和研發的目的



特點

同時研磨MT Ferrule 1頭起，最多6頭。
與SFP-550系列具有相同的幾何性能
適用于小批量、重新拋光和研發的目的


設備

研磨機: SFP-70D-MT (包含壓塊)
研磨夾具: PH07-MT-6T1(MT/PC, 6-axis)
: PH07-MT8A-6T1(MT/APC, 6-axis)


技術信息

應用: MT研磨
壓力調節: 通過更換壓塊實現兩個級別
研磨工藝: 干(4步驟)
耗材: D70類型都可用(研磨片和研墊)


工藝

STEP PAD FILM (service life) LIQUID TIME(min) CENTER PRESS SPACER
1~4axis 5,6axis 1,2 axis 3~6 axis
1st PG07-480-SR2 GC07 (1) None Manual Polishing
Purified Water 0.5 1 After Revolution
Lock fully 		4pcs
2nd PG07-480-SR2 AR07 (1) Purified Water 1 1 After Revolution
Lock fully 		2pcs None
3rd PG07-480-SR2 GH07 (1) Purified Water 1 1 After Revolution
Lock fully
4th PG07-480-SR2 FM07-SOAP (1) Purified Water 3 5 After Revolution
Lock fully

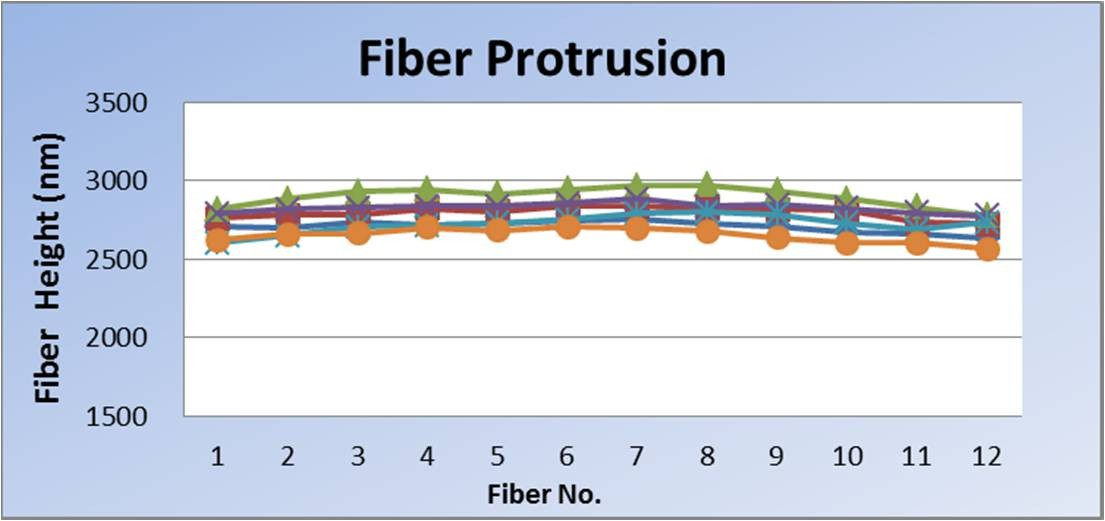

按標準參考性能

Ferrule No X angle
(deg.) 		Y angle
(deg.) 		X radius(mm) Y radius(mm) Min.
Fiber
height 		Min.
Fiber
height
1 0.00 -0.01 25994 301 2635 2753
2 0.00 -0.02 27255 223 2725 2840
3 0.01 -0.04 14181 294 2777 2975
4 0.01 -0.01 25208 266 2775 2885
5 0.00 0.01 16017 344 2606 2802
6 -0.01 0.01 26946 317 2567 2709
Ferrule No Max. diff. all fib. (nm) Max Adj. fib. (nm) Max core
dip (nm) 		Minus co-
planarity
(nm) 		Fibers
X angle (?) 		Valid pixel ratio (%)
1 119 40 nan 44 0.00 90
2 114 76 nan 60 0.00 90
3 198 -69 nan 104 0.01 89
4 110 45 nan 48 0.01 90
5 196 -57 nan 77 0.00 90
6 141 41 nan 66 -0.01 90



Disclaimer- 1) Polishing method with use of fibrous material is patented in the U.S (US patent No. 6106368). 2) A ferrule assembly with fiber protrusion between 0.5um and 2.5um after polishing is patented in the U.S. (US patent No. 5743785)
